Architecture Overview #

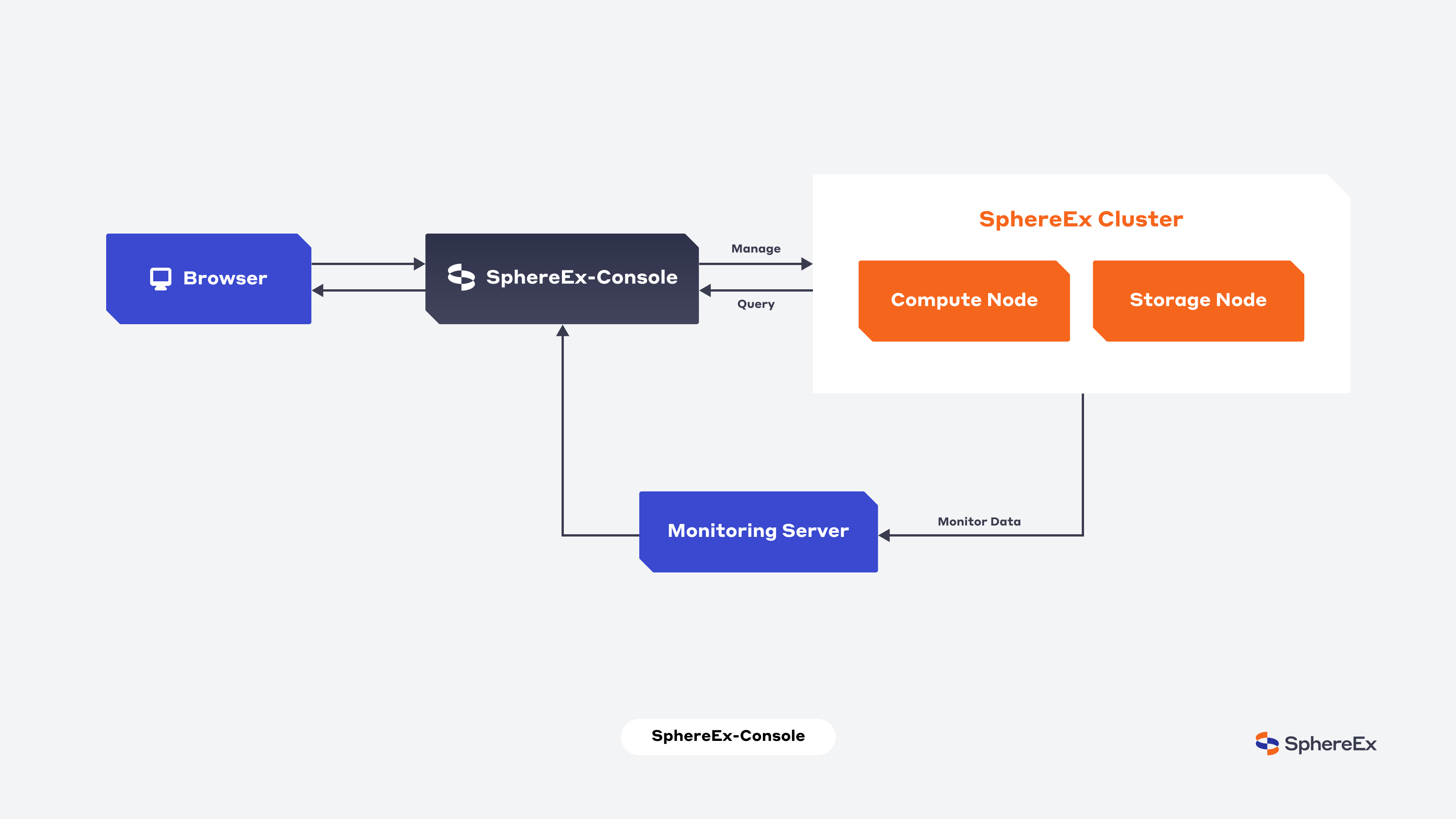

SphereEx-Console is based on B/S architecture. Accessed through web browser. Its logical structure diagram is as follows:

Users log into the system through the browser, and manage the cluster of SphereEx Enterprise Data Service Platform in SphereEx-Console. The monitoring data queried by SphereEx console comes from the data exported from the host and compute node in the cluster to the Prometheus server.
